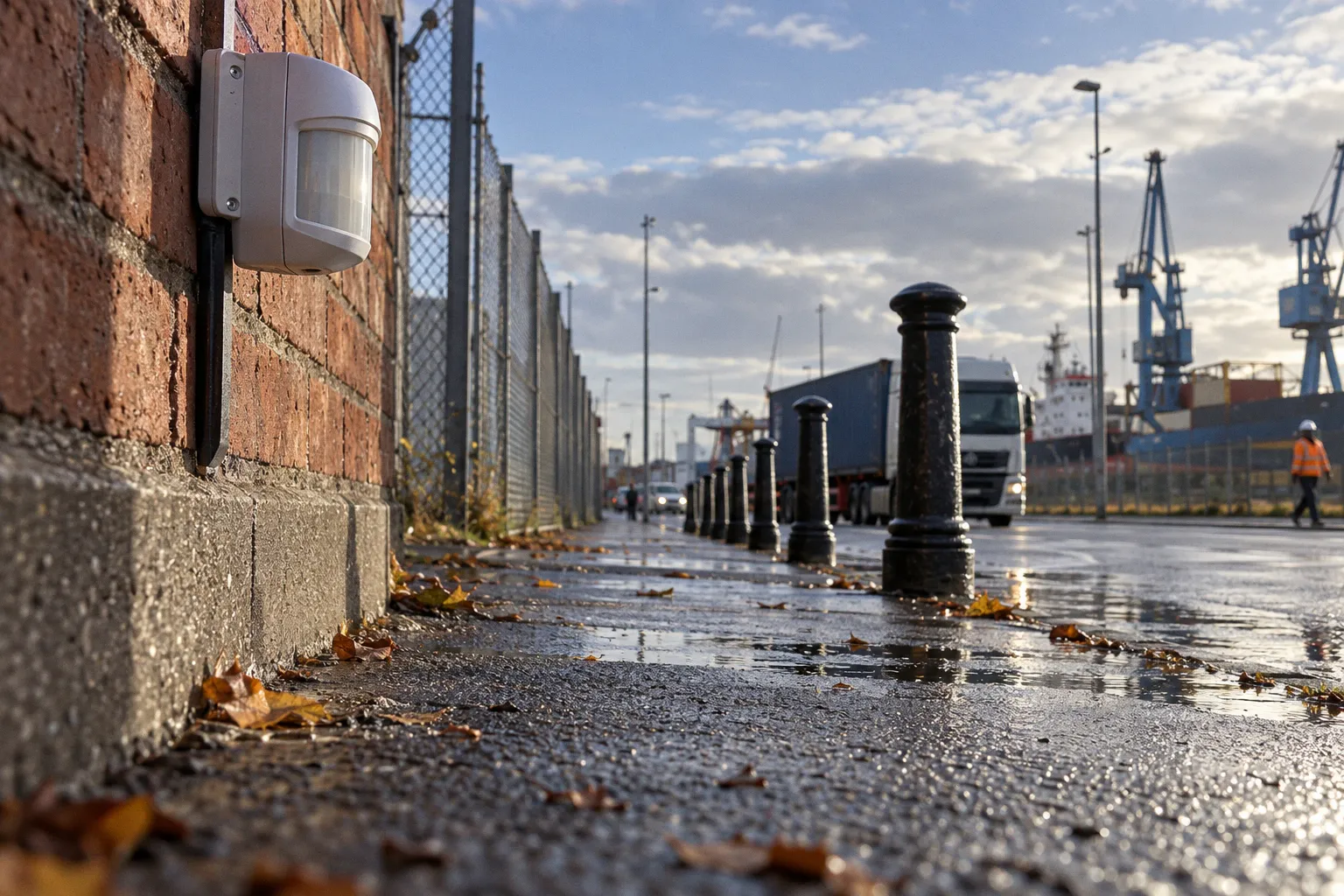

Passive infrared sensors: optimizing perimeter detection

Passive infrared sensors: optimising perimeter detection

The unit may be powered, connected and apparently working, yet still miss the movement that matters while triggering every time a shrub moves across the garden.

That is the central problem with passive infrared sensors for home perimeter security: detection quality depends less on the label on the box than on the physical relationship between the sensor, the building and the likely movement path. In Grimsby, Cleethorpes, Immingham and similar North East Lincolnshire streets, narrow side passages, rear alleys, low garden boundaries and exposed façades create predictable vulnerabilities. A sensor must be positioned to control those access points, not simply placed where installation is convenient.

The practical rule is straightforward. Make the sensor observe movement across its detection zones, keep its view stable, remove avoidable heat and sunlight sources, and overlap coverage where a boundary or approach route creates a blind spot.

A PIR sensor does not secure a perimeter by existing on the wall. It secures it by seeing the right movement from the right angle.

The physics of thermal detection: how PIR sensors actually work

Passive infrared sensors do not detect physical movement in the way a camera records a person walking. They detect rapid changes in infrared radiation emitted by warm objects as those objects pass through segmented detection zones created by the sensor’s Fresnel lens.

That distinction matters when planning a residential perimeter. A person moving through the sensor’s field of view creates changing thermal contrast between their body and the background. A wall, fence or paving surface remains relatively stable. A person crossing between those fixed background areas produces the change the PIR is designed to identify.

The sensor is therefore sensitive to movement patterns, not merely presence. The practical consequence is that the same unit can perform well on one elevation and poorly on another, even when the distance appears identical.

A typical residential PIR has:

• A horizontal detection angle of roughly 90 to 120 degrees.
• An effective detection range of approximately 5 to 12 metres.
• Segmented detection beams shaped by the Fresnel lens.
• Stronger response when a warm body crosses those beams laterally.
• Reduced usefulness where the approach is directly towards or away from the lens.

This is why a front door sensor facing directly at the path can be a weak arrangement. It may eventually register a person, but the approach does not necessarily produce the rapid sequence of beam crossings that gives the sensor its strongest response. A sensor positioned to make the person cross the detection pattern is generally more effective.

Do not confuse coverage angle with useful coverage. A 120-degree field of view does not mean every point inside that broad arc is equally well observed. The lens creates zones, and those zones can be interrupted by walls, fences, parked vehicles, planting or changes in ground level. A sensor can appear to cover a side passage while leaving the first step from the gate completely unobserved.

For burglary prevention, begin with the movement route rather than the equipment. Identify where someone would enter the property, where they would cross the garden or alley, and where they would reach a rear door, window or shed. Then position the sensor so that movement across that route produces a clear thermal change.

PIR placement for burglary prevention

Walk the perimeter during daylight and mark the following access points:

1. Front approach: the route from pavement, driveway or gate to the main entrance.

2. Side passage: particularly narrow paths leading towards a rear garden or extension.

3. Rear boundary: gates, low walls and alley connections that allow movement out of public view.

4. Building approach: the final route to rear doors, patio doors, accessible windows or attached garages.

5. Secondary structures: sheds, workshops and storage areas that may provide tools or concealment.

The point is not to cover every square metre. That often produces overlapping triggers and poor maintenance. The point is to cover the movement paths that connect public space to vulnerable access points.

In a typical terraced property, the side passage may be more important than the front garden. In a detached property, a sensor overlooking a rear corner may need to work with another unit covering the route around the opposite elevation. In a property backing onto a shared alley, the boundary gate deserves attention because it is the transition point between public access and private space.

The sensor should not be treated as a replacement for a secure gate, closed window or sound door lock. It is a detection layer. Its purpose is to identify movement early enough to activate lighting, send an alert or prompt a camera to record.

Strategic mounting: achieving the correct height

Mounting height controls more than range. It affects the sensor’s field of view, the area immediately beneath the unit and the ease with which someone can interfere with it.

For general residential room and perimeter detection, a mounting height between 1.8 and 2.75 metres is the usual working range. That range balances detection distance with practical coverage close to the wall. Mounting too low can leave the unit exposed to tampering and may produce an overly short, ground-level view. Mounting too high can create a blind area beneath the sensor and may push the most useful detection zones beyond the intended route.

The correct height is not a number to apply without looking at the property. It must be matched to:

• The distance from the wall to the intended movement path.
• The height of the boundary fence or gate.
• The slope of the ground.
• The presence of steps or raised decking.
• The sensor’s lens design and stated coverage pattern.
• Whether the unit is watching a person-sized approach or a wider vehicle route.

A sensor overlooking a narrow side passage should not be aimed at the top of a fence. That wastes the most useful part of the field of view. It should be angled down sufficiently to observe the path and the point where a person enters the detection zones.

At the same time, excessive downward tilt can create a short, shallow detection field. The unit may only respond when someone is already close to the wall. That is not a perimeter solution; it is a late warning at the final access point.

A practical mounting comparison

The 90-degree point is not a requirement that every installation must meet exactly. It is a way of thinking about the geometry. If a person walks directly towards the lens, their movement may produce fewer rapid changes across the segmented zones. If they cross the sensor’s beams from one side to the other, the thermal pattern changes more distinctly.

Where the property layout allows it, position the sensor so the intruder’s likely route crosses the detection field rather than runs straight into it.

Height sets the field of view. Position sets whether the movement is actually visible.

Mastering detection angles and eliminating blind spots

The most common perimeter mistake is to install one sensor at the corner of a building and assume the whole side and rear boundary are covered. The wall may block part of the field. The sensor may point past the gate instead of across it. A fence may conceal the first few metres of the approach. A second structure may create a thermal and visual obstruction.

A proper audit follows the movement route on foot.

Stand at the gate, then move along the likely approach to the building. Note where the sensor’s detection should begin, where it should end and which objects interrupt the view. Do not judge the coverage only from the mounting position. A sensor may look directly at the gate while missing the route between the gate and the rear door.

For larger or awkward perimeters, overlapping zones are usually more useful than trying to force a single sensor to cover everything. One sensor can watch the gate and initial approach. Another can cover the section near the rear door. The zones should overlap enough to avoid a dead area between them, but not so heavily that every moving branch or passing animal creates repeated alerts.

Overlapping coverage is particularly useful where:

• A side passage bends around an extension.
• A boundary wall blocks the corner of the field of view.
• The sensor must be angled away from direct sunlight.
• The approach route runs close to the edge of the rated range.
• A gate opens into a concealed area.
• The building has separate front and rear access routes.

Coverage should be assessed horizontally and vertically. A unit can miss movement because it is aimed too far across the property, but it can also miss movement close to the wall or beneath the lens. Steps, raised beds and uneven paving change the distance between the sensor and the person. A route that is 6 metres away at one point may be much closer after a turn.

The glass and window issue

Do not place an outdoor PIR behind a window and expect it to perform as an external perimeter detector. Standard window glass blocks far-infrared thermal radiation, so the sensor cannot be treated as though it were mounted outside. Reflections, internal heat sources and the glass itself can further complicate the field of view.

If a window is the only practical position, use equipment specifically designed for that application and follow its installation requirements. Otherwise, mount the sensor externally with a clear view of the access point. The aim is to observe the movement path before someone reaches the door or window, not to monitor the garden from behind the glass.

Testing the line of sight

Once mounted, test the sensor from several directions:

1. Walk across the field of view from left to right.

2. Walk across it from right to left.

3. Approach directly towards the lens.

4. Move away from the lens.

5. Start close to the wall and then repeat at the outer edge of the intended range.

6. Test the route beside the gate, fence and building corner.

7. Repeat at dusk if the sensor is near a low-angle light source.

The purpose is not to prove that the unit triggers once. It is to identify inconsistent areas. A perimeter sensor that works only when someone crosses the centre of the garden is not controlling the access point.

If a camera or smart light is linked to the PIR, check the complete response. The light should activate where it improves visibility, and the camera should record the relevant approach rather than a harmless section of fence. A sensor can trigger successfully while the linked device is aimed in the wrong direction.

False alarm reduction in outdoor motion detectors

Outdoor PIR sensors operate in a changing environment. Sunlight moves across walls and paving. Vegetation shifts in wind. Exhaust from vehicles introduces a moving heat source. Reflected heat from roofs, conservatories and exterior equipment can alter the background.

The sensor should be installed with those conditions in mind rather than relying on sensitivity controls to correct a bad location.

Direct sunlight

National security guidance recommends avoiding a direct east or west orientation for outdoor PIR sensors because low-angle sunlight can create false alarms. The problem is most pronounced when the sun enters the lens or heats surfaces within the detection field.

This does not mean an east- or west-facing wall can never carry a sensor. It means the installation requires closer assessment. Use the building’s geometry, a suitable hood where compatible with the device, and a different angle if possible. Do not allow the sensor to look directly into the rising or setting sun.

A sensor facing into bright sunlight may also produce unreliable results at particular times of day. Test it in the morning and evening, not only under midday conditions.

Moving vegetation

Shrubs and branches are a frequent source of nuisance triggers. The issue is not simply that plants move. A warm background, changing sunlight and repeated movement across the detection zones can produce the thermal changes the PIR interprets as activity.

Keep vegetation outside the main detection field where possible. Trim branches that cross the line of sight, especially those close to the sensor. Do not aim the unit directly across a hedge that moves in ordinary wind. A static fence is easier for the sensor to ignore than a constantly shifting canopy.

This is a low-cost improvement and often more effective than reducing sensitivity. Lower sensitivity can also reduce useful detection at the boundary. Remove the moving object before weakening the sensor’s response.

Heat sources and vehicles

Avoid directing an outdoor PIR at boiler flues, extractor outlets, air-conditioning equipment or areas where vehicle exhaust regularly crosses the field. A moving plume of warm air can create an unstable background. Heat reflecting from metal surfaces can also change the conditions around the detection zones.

If the sensor must cover a driveway, set it across the pedestrian approach rather than directly towards the place where a vehicle’s exhaust will disperse. A slight downward tilt may help secure the ground route, but it must not bring a nearby heat source into the most sensitive part of the field.

Sensitivity controls

Sensitivity is not a substitute for placement. Start with the physical audit:

• Remove or trim moving vegetation.
• Change the orientation away from low-angle sunlight.
• Adjust the field of view to exclude a road or neighbouring property.
• Correct the mounting height and downward angle.
• Move the sensor away from heat sources.
• Add a second sensor if one unit cannot cover the route cleanly.

Only then adjust sensitivity. A sensor set too aggressively may alert every time environmental conditions change. A sensor set too weakly may fail to detect a person crossing the outer part of the intended zone.

The goal is not maximum sensitivity. The goal is reliable detection of movement across a defined access route.

Advanced perimeter detection: dual-technology sensors and smart integration

Some residential boundaries are simply too difficult for a single PIR. Open gardens, exposed driveways, busy roads and areas with strong temperature changes can generate a high number of false triggers. In those situations, dual-technology sensors can offer a more controlled approach.

Dual-technology sensors combine passive infrared detection with microwave detection. The two systems look for different indicators: a thermal change from the PIR element and a Doppler shift associated with movement from the microwave element. An alert is generated only when both conditions are met.

This can reduce false alarms in challenging environments, but it does not make poor positioning acceptable. A dual-technology unit still needs a clear line of sight, a suitable mounting height and a defined movement route. Microwave detection can also extend beyond the visual area you intended to monitor, depending on the equipment and surroundings. The boundary of the detection zone must be checked rather than assumed.

For a home perimeter, use dual technology where the environmental problem is persistent and the access route is important enough to justify the additional complexity. It is not automatically the best answer for every gate or garden.

Integrating PIR sensors with smart home lighting

A PIR can be connected to an exterior light, camera or notification system. The physical sequence should be designed before the devices are paired.

A useful arrangement might be:

• The first PIR detects movement at the side gate.
• A light illuminates the route without shining directly into the sensor.
• A camera records the gate and the section leading towards the house.
• A second PIR covers the approach to the rear door.
• An alert is generated only after the relevant zone is triggered.

Avoid placing the light so that it shines into the PIR lens or creates sharp reflections across the monitored area. Also avoid aiming a camera at the sensor’s housing while leaving the actual access point outside the frame. The sensor, light and camera should support the same line of sight.

Smart integration is most effective when it makes a physical vulnerability more visible. It is less useful when every movement in the garden creates an alert that is ignored after a few evenings.

For household target hardening, combine detection with delay and deterrence:

• Keep gates closed and secured rather than relying on the alert alone.
• Use lighting to remove concealment around doors and paths.
• Keep bins, ladders and garden tools away from windows and fences.
• Mark valuable equipment so ownership is easier to establish.
• Maintain clear sightlines from the house to the main access points.
• Review alerts after changes to planting, fencing or outdoor equipment.

A PIR identifies a change in thermal conditions. It does not determine intent, identify a person or physically prevent entry. The perimeter still needs a secure gate, sound boundary and protected access points.

A low-cost physical audit for your own property

You can carry out a useful first audit without buying another device. Start outside and assess the property as an opportunist would: look for the route with the least visibility, the easiest transition from public to private space and the access point that can be reached without crossing a well-lit area.

Then work through the perimeter in order:

1. Begin at the public approach. Identify gates, alleys, driveways and gaps where someone can move from the street into the property.

2. Trace the concealed route. Follow the path behind fences, extensions, sheds or planting. This is where line of sight usually fails.

3. Locate the final access point. Mark rear doors, patio doors, accessible windows and garage connections.

4. Check existing PIR height. If it is outside the normal 1.8–2.75 metre range, examine whether it has a blind area or is vulnerable to interference.

5. Test lateral movement. Walk across the detection field, not only towards the sensor.

6. Look for environmental triggers. Note branches, direct sun, vehicle exhaust, reflective surfaces and hot external equipment.

7. Check the linked response. Confirm that lighting, cameras and alerts cover the same route.

8. Inspect after dark. A sensor can have a clear daytime view but poor practical coverage when the property becomes visually concealed.

9. Correct the cheapest fault first. Trim vegetation, change the angle, clear the line of sight or relocate the light before purchasing more equipment.

10. Re-test after every change. A new fence panel, shed or hedge can create a new dead zone.

This process is more valuable than adding a second sensor to compensate for the first one being badly aimed.

The final position

Reliable PIR sensor placement for burglary prevention is a geometry problem before it is a technology problem. The sensor needs a stable background, a clear line of sight, a sensible mounting height and a movement route that crosses its detection zones. In most residential settings, that means mounting within roughly 1.8 to 2.75 metres, avoiding direct east- or west-facing sunlight where practical, and positioning the field across the likely approach rather than straight at it.

Begin with the access points: gate, alley, side passage, rear door and accessible window. Secure those routes physically, then use PIR detection to reveal movement early. If the environment remains difficult, use overlapping zones or dual-technology equipment rather than turning sensitivity up until the system becomes noisy.

The immediate low-cost actions are clear:

• Reposition sensors to improve lateral movement across the detection field.
• Correct mounting height and downward angle.
• Trim vegetation that moves in the line of sight.
• Keep direct low-angle sunlight out of the lens where possible.
• Remove heat sources and vehicle exhaust paths from the monitored zone.
• Test the route at both the centre and edge of the stated range.
• Make sure smart lights and cameras cover the same access point.
• Re-test whenever planting, fencing or outdoor structures change.

A perimeter is only as strong as its least visible approach. Find that approach first. Then make the sensor watch it properly.
